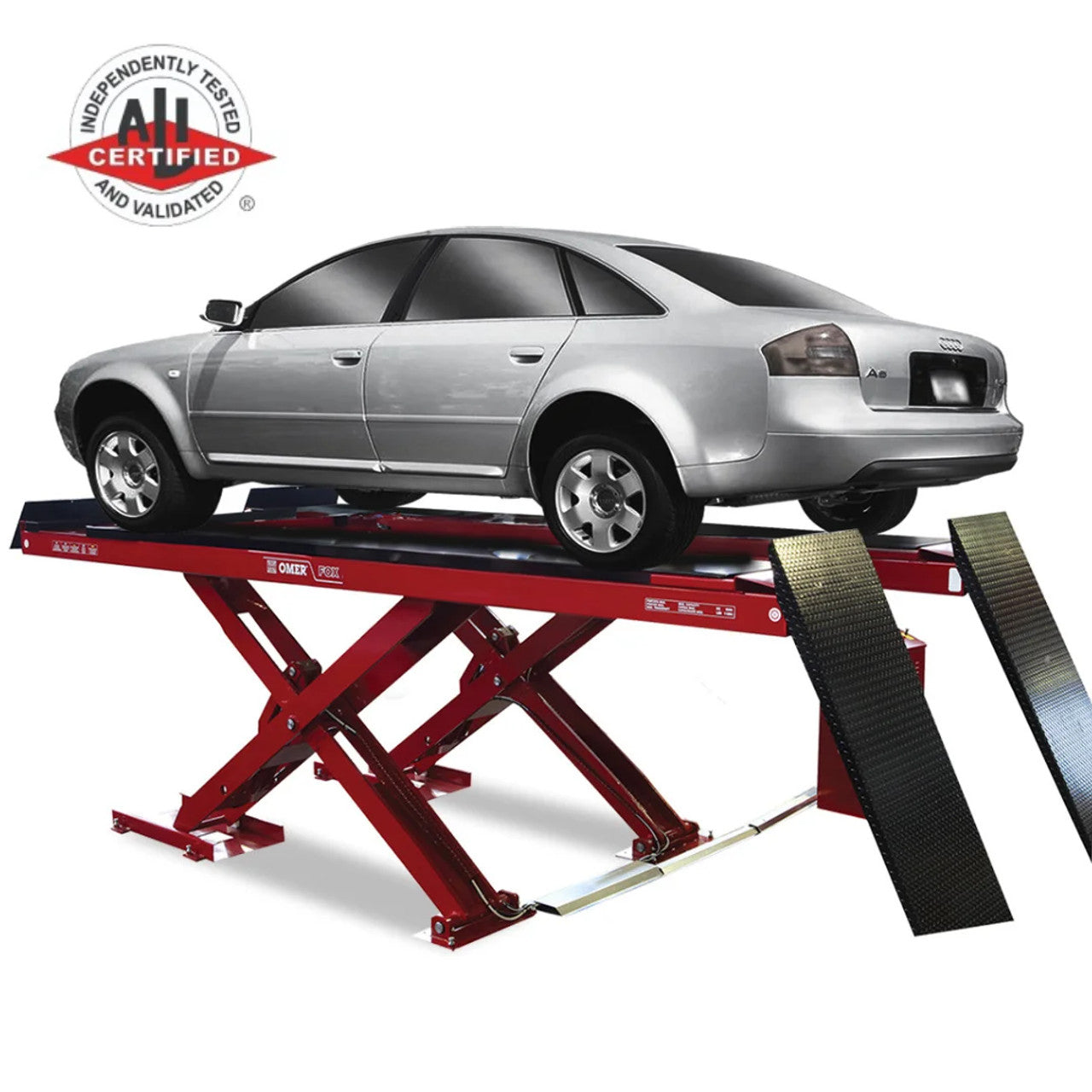

Omer FOX 65 Alignment Double Scissor Lift – 14,000lb Capacity – ALI Certified

🛠️ Product Overview

The Omer FOX 65 Double Scissor Lift is built for precision alignments, heavy-duty lifting, and maximum technician productivity. With a 14,000 lb lifting capacity, this full-rise alignment lift is engineered in Italy by O.ME.R S.p.A., a world leader in automotive lift manufacturing for over 40 years. ALI Certified and manufactured in an ISO 9001 facility, the FOX 65 delivers superior strength, innovative safety systems, and a compact scissor design that eliminates posts and maximizes workspace.

Perfect for handling passenger cars, SUVs, and light-duty trucks, the FOX 65 offers flush or surface mount installation options, precision leveling, and a host of integrated safety features—making it an ideal choice for busy professional workshops.

🔑 Key Features

• 14,000 lb Lifting Capacity – Designed to accommodate a wide range of vehicles.

• Full-Rise Access – Raised height provides complete undercarriage accessibility for alignments and repairs.

• Space-Saving Scissor Design – No posts, maximizing shop floor efficiency and technician access.

• Volumetric Hydraulic Control – Maintains perfect leveling within ¼” without sensors or PC boards.

• Premium Components – Siemens 3HP motor and Bosch hydraulic pump ensure reliable performance.

• Safety First – Includes multiple safety locks, pressure relief valves, and photocell alignment control.

• Flexible Installation – Available in both surface and flush-mount configurations.

• Low Maintenance – Double-baked powder coat finish, zerk grease fittings, and low-pressure hydraulics.

• Optional Accessories – Runway jacking rails, stainless steel radius plates, built-in air outlets, LED lighting, and hot-dip galvanization.

📊 Specifications

• Model: FOX 65

• Capacity: 14,000 lbs (6.35T)

• Lift Type: Double scissor alignment lift

• Raised Height: ~79–81” (2000+ mm)

• Lowered Height: Low-profile design for easy vehicle access

• Runway Lengths: Up to 20 ft, customizable

• Overall Width: ~90–100” depending on configuration

• Control System: Volumetric hydraulic/mechanical

• Power Requirements: 220V, 1PH, 60Hz

• Motor: Siemens 3HP / 2.2kW with Bosch pump

• Certification: ALI Certified – ANSI ALCTV 2011

• Finish: Double-baked powder coat (optional hot dip galvanizing)

✅ Why Choose the Omer FOX 65?

The FOX 65 delivers precision, strength, and reliability for professional shops that need accurate alignments and high-capacity lifting in one compact, low-maintenance system. With Italian engineering, premium components, and ALI certification, this lift is built to maximize efficiency and durability in demanding service environments.

📦 What’s Included

• Omer FOX 65 Double Scissor Alignment Lift

• Hydraulic power unit

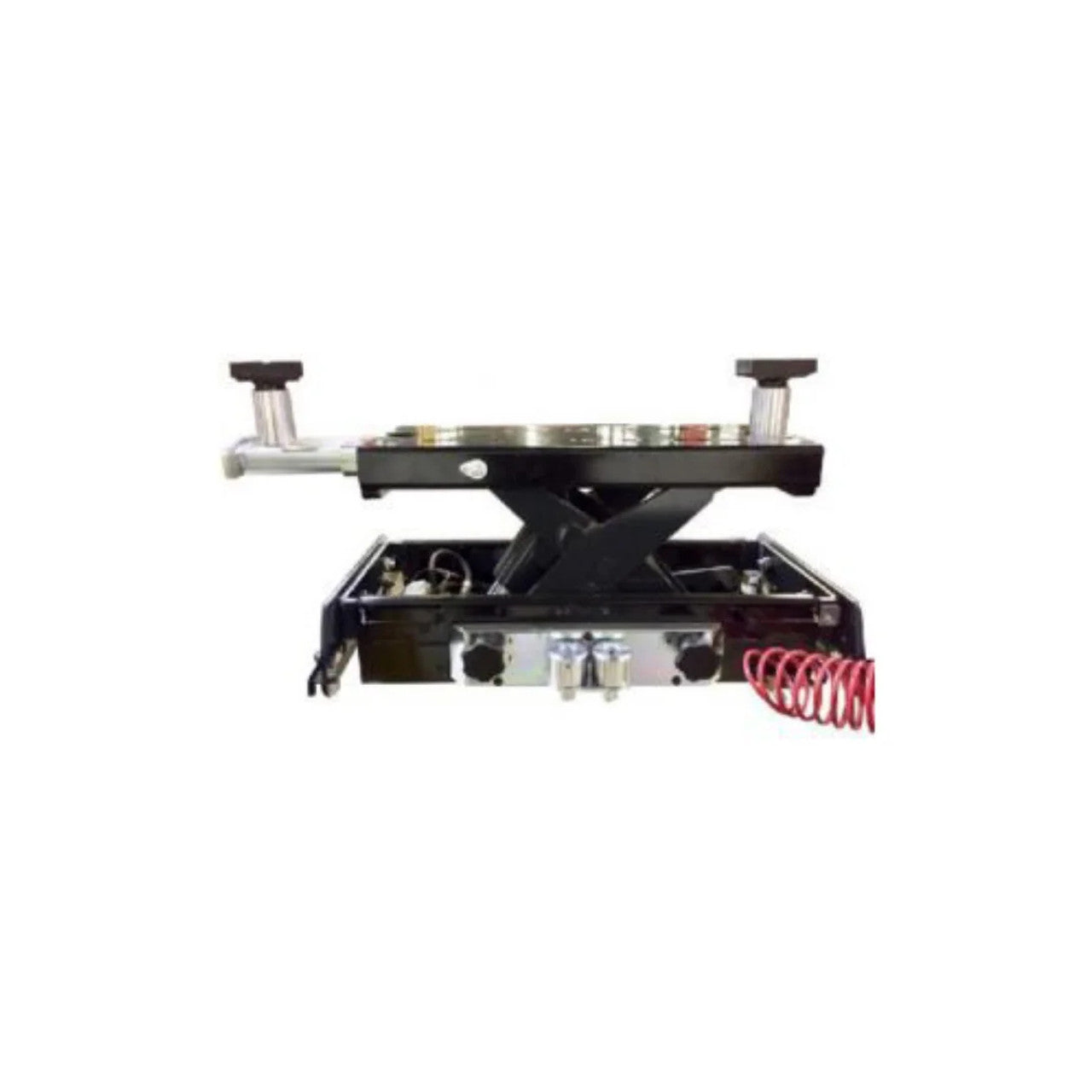

• Rolling jack rail (with jacking beam option)

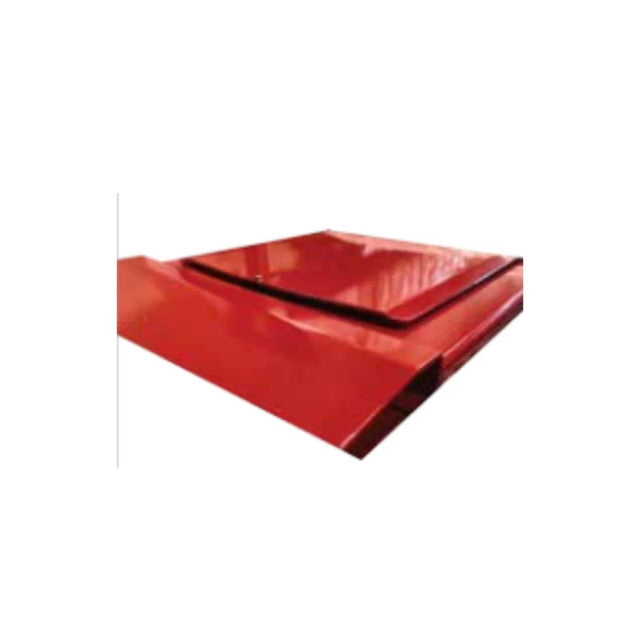

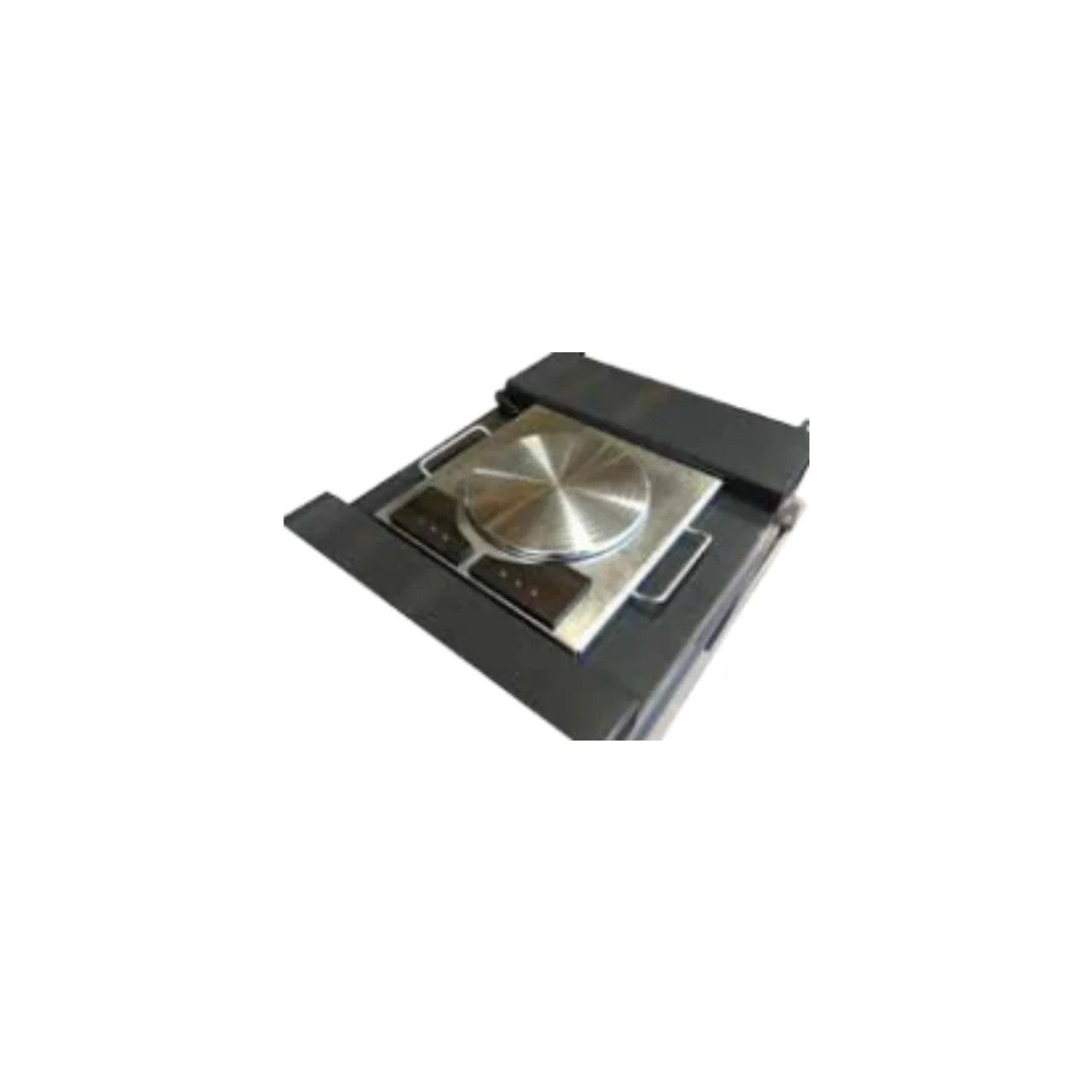

• Center hose cover & turning plate recesses

• Rear pneumatic slip-plates

• User manual & installation guide

🛡️ Warranty & Support

Backed by Omer’s comprehensive parts and labor warranty, with optional extended heavy-duty jacking beam coverage, ensuring long-term reliability and peace of mind.
