OMER USA Inc.

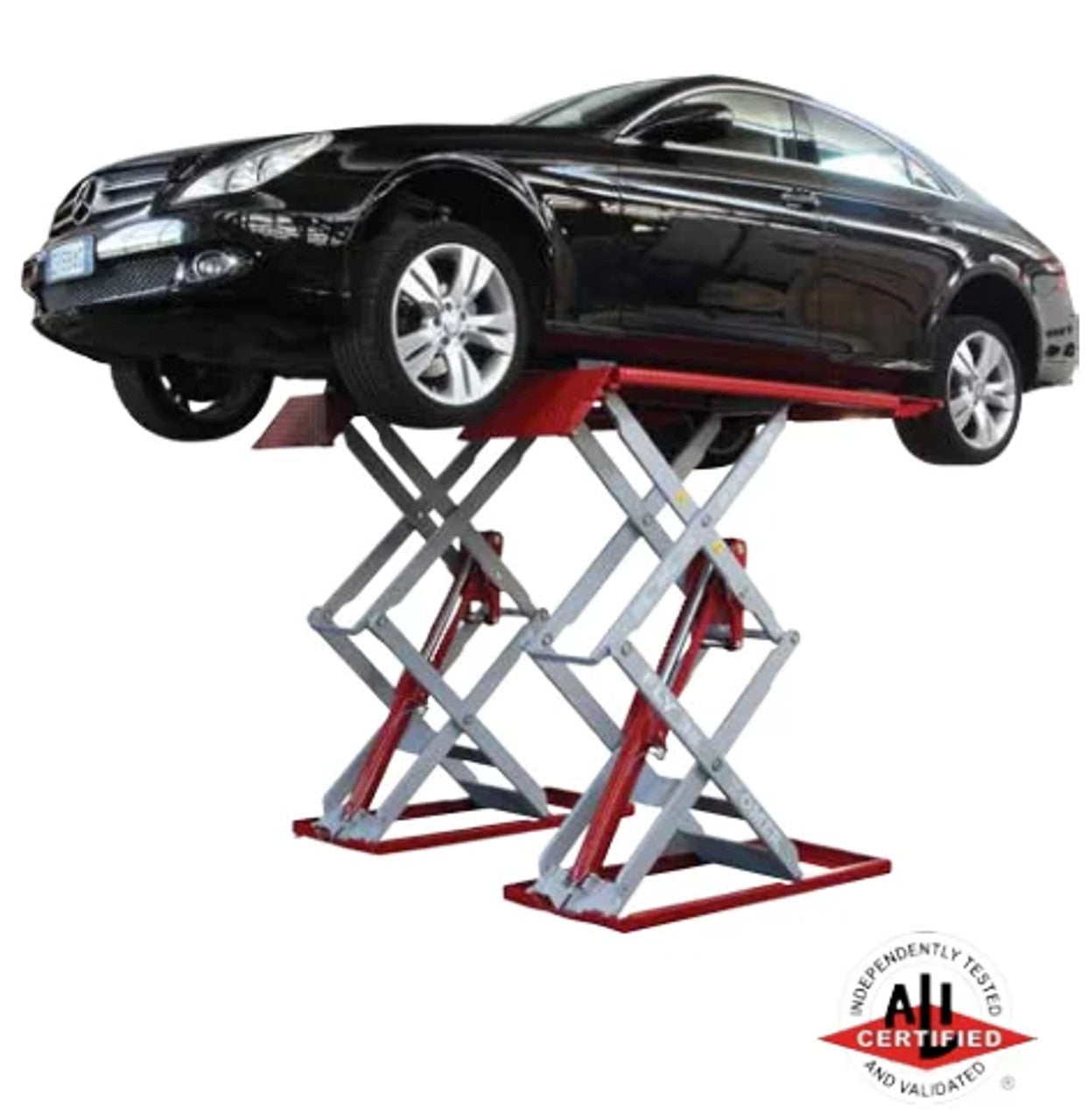

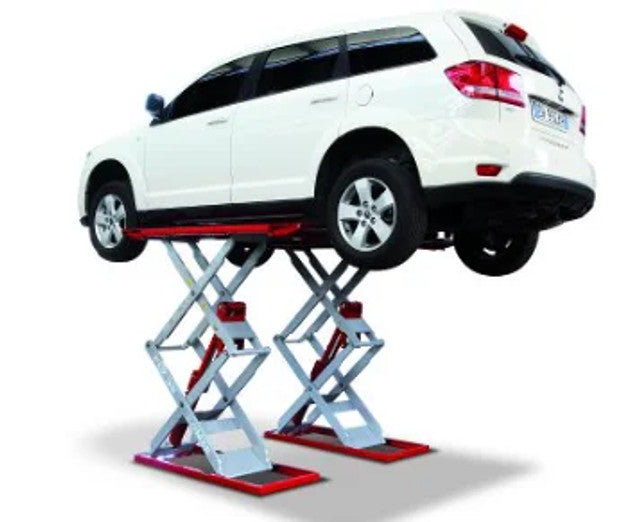

Omer FLY35 Double Scissor Lift – 7,700lb Capacity – ALI Certified

$0.00 USD

Sale Sold out

Shipping calculated at checkout.

Lift Set Up Above Ground Flush Mount

🛠️ Product Overview

The Omer FLY35 Double Scissor Lift is the perfect balance of safety, space efficiency, and reliability for modern workshops. With a 7,700 lb lifting capacity, this full-rise pad-style lift is designed for most passenger vehicles—from compact cars to light-duty trucks. Manufactured in Italy by O.ME.R S.p.A. in an ISO 9001-certified facility, and ALI Certified, the FLY35 delivers premium engineering in a compact footprint that maximizes your shop’s productivity.

Compared to traditional two-post lifts, the double scissor design allows for faster vehicle positioning, unobstructed access, and reduced floor space usage, making it a smart choice for busy service bays.

🔑 Key Features

7,700 lb Capacity – Ideal for a wide range of passenger cars and light-duty trucks.
Space-Saving Design – Compact, post-free layout for maximum floor efficiency.
Full-Rise Access – Raised height of 74.4” ensures excellent undercarriage accessibility.
Ultra-Low Profile – Just 4.5” lowered height for easy vehicle drive-on and installation.
Heavy-Duty Construction – Built in Italy with Siemens and Bosch components.
Pneumatic Safety Locks – Automatic locks on both cylinders for added security.
Advanced Safety Features – Velocity fuse, max pressure valve, dead-man controls, and 24V low voltage circuit.
Reliable Operation – Hydraulic and mechanical synchronization system—no electronic sensors required.
Optional Galvanization – Hot-dip galvanized finish for protection against corrosion in wet or salty environments.

📊 Specifications

Model: FLY35
Lifting Capacity: 7,700 lbs / 3.5T
Overall Length (Surface/Flush): 83.3” (2115 mm)
Overall Width: 80” (2030 mm)
Width Between Runways: 31.5” (800 mm) adjustable
Deck Width: 24.2” (615 mm)
Lowered Height: 4.5” (115 mm)
Raised Height: 74.4” (1890 mm)
Lifting Time: 55 sec (raise) / 30 sec (lower)
Power Requirement: 230V, 60 Hz, 1 PH, 23 Amp
Shipping Weight: 1,870 lbs (850 kg)
Part Number: OMRFLY35UL

✅ Why Choose the Omer FLY35?

The FLY35 is a proven solution for shops that demand efficiency, reliability, and safety. Its compact footprint saves space, while its ALI certification and multiple integrated safety features give you complete confidence with every lift.
